DP Flow Measurement

DP FLOW PRODUCTS

EMI have extensive experience specifying DP flow meters for a range of applications. The Company specialises in designing, and manufacturing all forms of primary DP Flow Elements. EMI are able to accurately design and manufacture within the limits of ISO 5167 and other internationally recognised standards.

Products we offer:

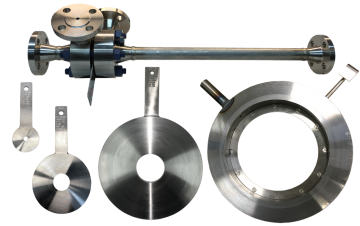

DP Flow, Orifice Plates, Orifice Carriers, Meter Runs
Orifice Plates, Orifice Carriers, Meter Runs

Orifice Plates & Associated Products

  • Orifice Plates:
    • Square Edge
    • Conical Entrance
    • Quadrant
    • Eccentric
    • Segmental
    • Restrictions
  • Integral Orifice Carriers
  • Meter Run Sections

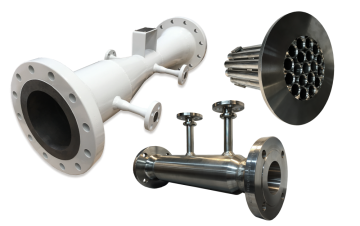

DP Flow: Solid Machined Venturi, Fabricated Venturi flow tubes, Flow straightener Tube Bundles
Solid Machined Venturi, Fabricated Venturi, Flow straightener Tube Bundle

Other DP Flow Products

  • Venturi Tubes (ISO 5167-4)
  • Flow Nozzles (ISO 5167-3):
    • Long Radius
    • ISA 1932
    • Venturi Nozzles
  • Wedge Meters
  • Flow Conditioners / Straighteners (ISO 5167-2)
    • 19-Tube Bundle (1998)
    • Zanker Flow Conditioner Plate

Flow Elements can be designed to suit all applications:

  • Measurement of gases, steam, liquids and slurries
  • Many options for materials of construction*
  • 3.1 or 3.2 Materials Traceability & NACE Compliance
  • ¼”NB – 48”NB [DN8 – DN1200]
  • ASME, API, PN Rated Process connection to suit all requirements
  • Design Pressures & Temperature to customer requirement
  • Non-Destructive Testing
  • Calibration
  • PED Compliance

*Materials:

  • Carbon Steel grades
  • ChromeMoly Steels (F9, F11, F22, F91 etc.)
  • Austenitic Stainless Steel Grades (300 Series: 316, 304, 310 etc.)
  • Duplex/Super Duplex Grades (F51, F53, F55 & F60)
  • High Moly Stainless Steel (F44)
  • Hastelloy™ (C22 / C276 / B3)
  • Inconel® Grades (Alloy 600 / Alloy 625 / Alloy 718)
  • Incoloy® Grades (Alloy 800 / Alloy 825)
  • Monel® (Alloy 400)
  • Cupronickel
  • Titanium
  • Tantalum, Zirconium
